SD1446

54,50 €

Artikel-Nr.: 30488

Produktinformationen "SD1446 "

Original ST Microelectronic (kein Lizenztyp, Austauschtyp, o.ä.)

Austausch f. MRF455

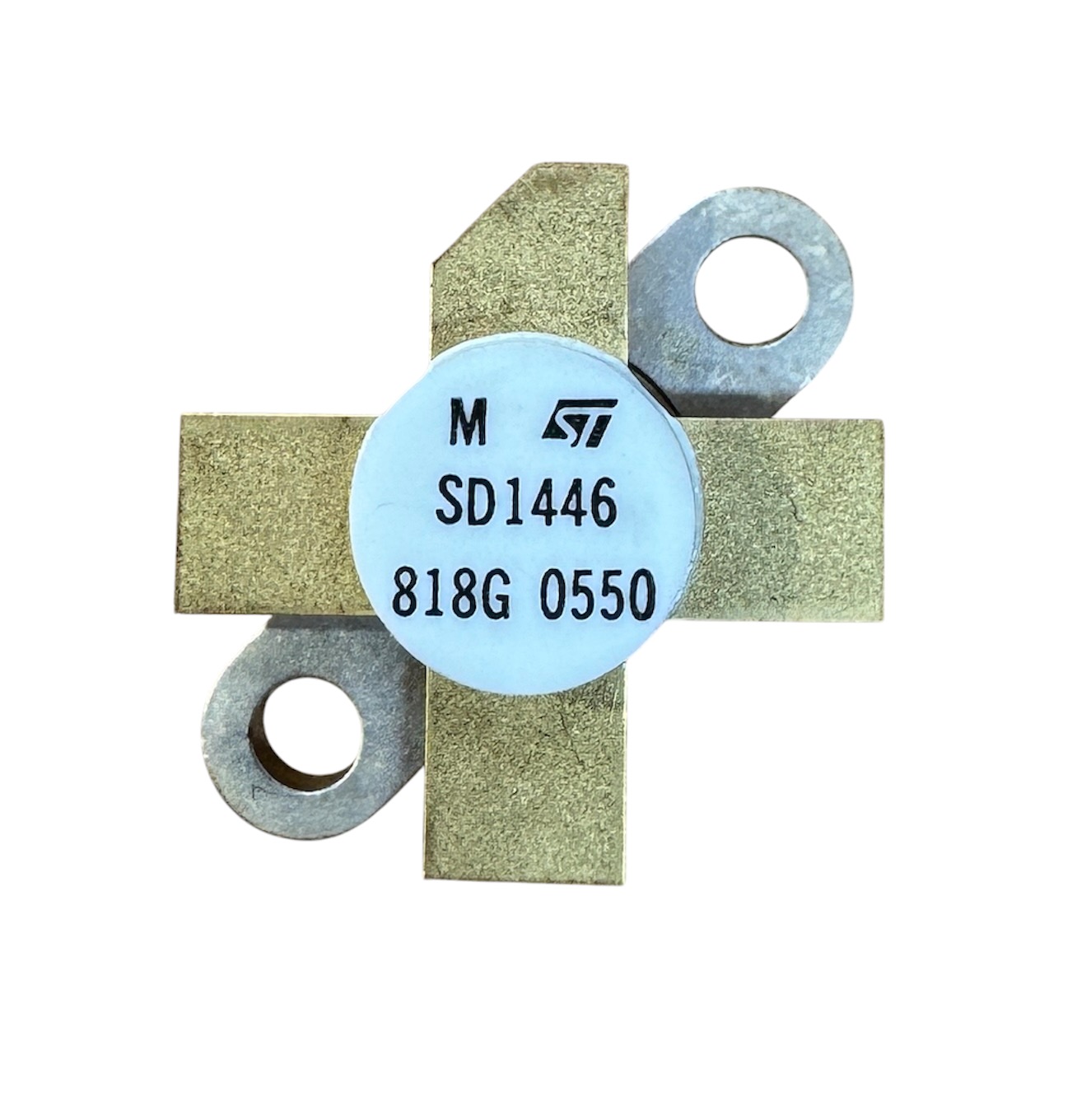

SD1446 STMicroelectronics 80 Watt (factory rated 90W) Transistor, 27-88 MHz 0.380 Flange (NOS)

The SD1446 is a 12.5 V Class C epitaxial silicon NPN planar transistor designed primarily for land mobile transmitter applications. This device utilizes emitter ballasting and is extremely stable and capable of withstanding high VSWR under rated operating conditions.

Factory Rated 90 watts @ 28 MHz, 12.5vdc. Selected for HIgh Beta to yield maximum power gain.

50 MHz
12.5 Volt
Power Out: 80W
Power Gain: 10dB
Common Emitter
Gold Metallization
